OBD-II Overview
OBD-II is a standard interface for accessing vehicle data and diagnosing issues. It was introduced in the 1990s and has since become widely adopted by the automotive industry.
OBD-II Features
- Provides access to vehicle performance, speed, and engine data
- Offers diagnostic trouble codes (DTCs) for troubleshooting issues
- Supports various communication protocols, including SAE J1850 PWM, CAN (Controller Area Network), and LIN (Local Interconnect Network)

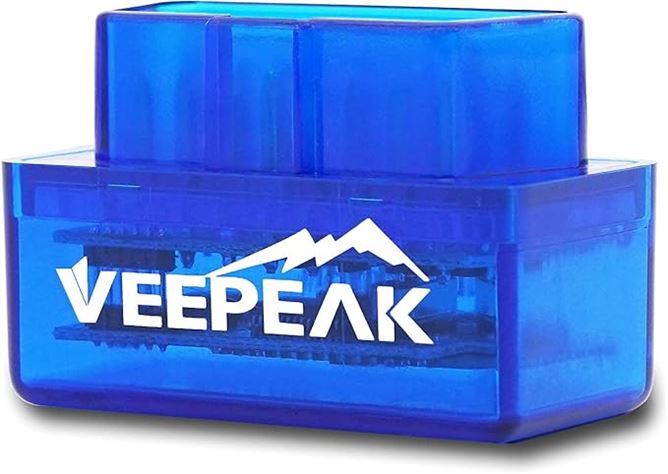

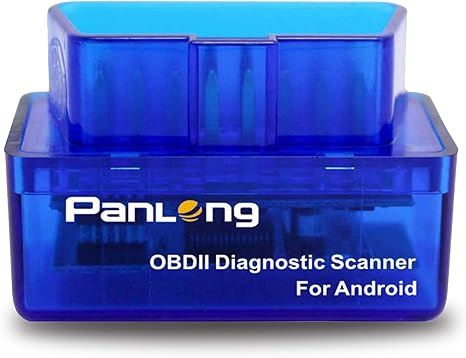

- Can be used with a variety of tools, including code readers, scan tools, and data loggers
Electric Vehicles and OBD-II
EVs are becoming increasingly popular due to their environmental benefits and reduced operating costs. However, many EVs still rely on OBD-II for diagnostic purposes.
Challenges with OBD-II in EVs
- Limited support for EV-specific protocols and communication standards
- Potential issues with high-voltage systems and electrical isolation requirements
- Difficulty in accessing battery management system (BMS) data
Modern Alternatives to OBD-II
Several modern alternatives are emerging, including:
CAN Bus
The Controller Area Network (CAN) bus is a widely adopted protocol for automotive communication. It's commonly used in EVs for high-speed data transfer.
High-Speed CAN (HSCAN)
High-Speed CAN (HSCAN) is an evolution of the traditional CAN bus. It offers improved performance and reliability, making it suitable for EV applications.
SAE J1939
SAE J1939 is a protocol designed specifically for heavy-duty vehicles, including trucks and buses. While not exclusive to EVs, it's gaining popularity in this market segment.
Key Takeaways
- OBD-II remains a widely used standard for vehicle diagnostics
- Challenges exist when applying OBD-II to EVs due to differing communication protocols and electrical requirements
- Modern alternatives like CAN bus, HSCAN, and SAE J1939 offer improved performance and adaptability for EV applications
